Description

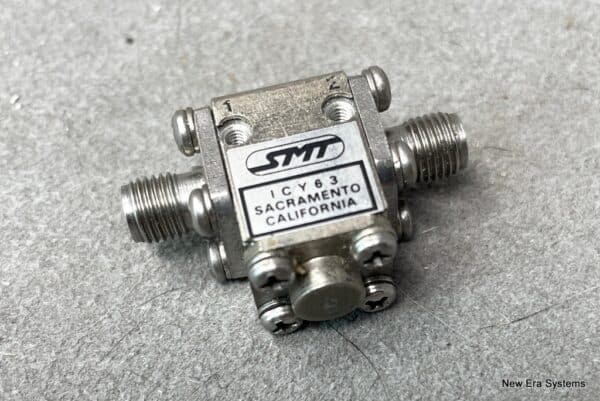

The SMT model I 1316 is a type of RF & Microwave isolator, specifically the INA-1316 from Stellant Systems. Here’s a breakdown of what it is and what it does: What is an RF Isolator?

An RF isolator is a passive device used in radio frequency systems to allow signals to pass in one direction while blocking them in the opposite direction. This protects sensitive components from unwanted reflections or interference.

Specs of the INA-1316

• Frequency Range: 13 to 16 GH
  Insertion Loss: 0.4 dB (very low, meaning minimal signal loss)
  Isolation: 20 dB (good protection against reverse signals)
  VSWR: 1.25:1 (indicates good impedance matching)
  Connector Type: SMA Female
  Operating Temperature: -54°C to +85°C

SMT stands for Surface Mount Technology, which means the component is designed to be mounted directly onto the surface of a printed circuit board (PCB). This is common in modern electronics for compact and efficient assembly.

If you’re working on a high-frequency RF project or need protection for sensitive components in a microwave system, this isolator is a solid choice.
