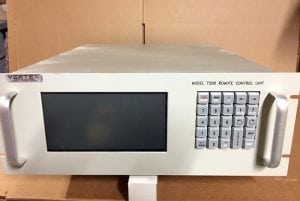

VERTEX 7200 REMOTE CONTROL UNIT
THE VERTEX REMOTE CONTROL UNIT WORKS WITH THE 7200 CONTROLLER DESCRIBED BELOW. IT REMOTELY CONTROLS THE VERTEX 7200 ANTENNA INDOOR CONTROL UNIT ALSO KNOWN AS THE VERTEX 7200 ANTENNA DRIVE.
THIS 7200 REMOTE CONTROL UNIT WAS USED AT A UNIVERSITY TO CONTROL ONE 9 METER C BAND ANTENNA AND ONE 7 METER KU ANTENNA USING BASICALLY AN AB SWITCH TO MOVE BETWEEN THE 2 ANTENNAS.
The General Dynamics SATCOM Technologies Model 7200 Antenna Control System is a state-of-the-art automatic positioning system which incorporates advanced control modes and an enhanced menu-driven user interface to provide accurate antenna positioning with minimum operator effort. Fully automatic tracking of inclined orbit satellites is accomplished with the revolutionary Orbit Prediction Track (OPT) algorithm, which generates future AZ and EL pointing data by propagating a physically valid orbit through initial measured data to the time of interest.
This type of ephemeris prediction offers increased efficiency and accuracy over methods which merely use measured data in a curve fitting routine to predict a trajectory. The Model 7200 user interface employs a front panel graphics display which provides convenient menu-driven editing and control function selection. In addition, a “Target-Oriented” operating environment allows the system to have custom configured control modes for multiple satellites, with simultaneous maintenance of corresponding data bases for each. The system is configured around the GDST Model 7200 Antenna Control Unit (ACU), contained in a 7-inch rack mountable cabinet. The system is controllable via Ethernet or RS-232E / RS-422 serial ports, allowing remote operation or integration with a supervisory monitor and control computer.
