Description

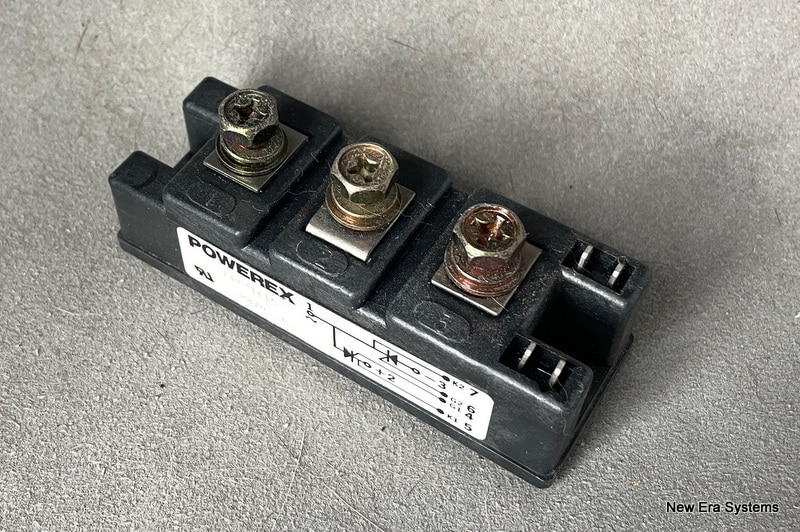

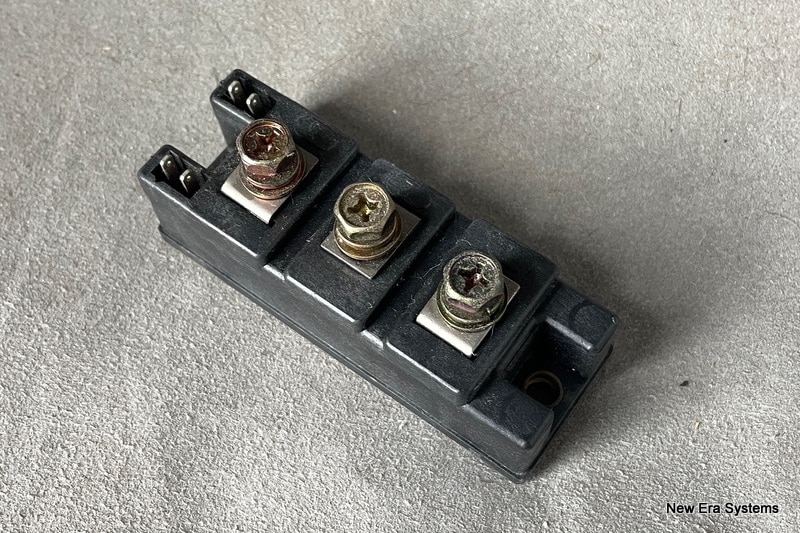

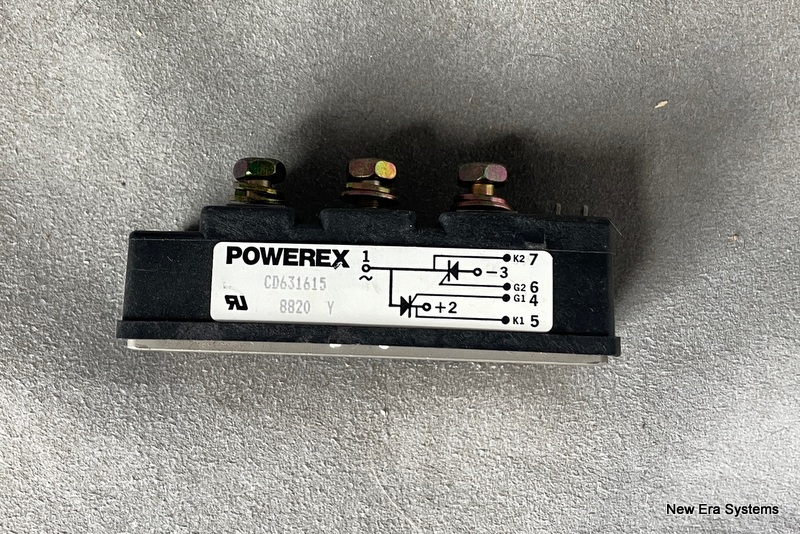

The Powerex CD631615 is a high-power dual SCR (Silicon Controlled Rectifier) module designed for industrial applications that demand robust phase control and electrical isolation. Here’s a breakdown of its key specs and use cases:
- Type: Dual SCR POW-R-BLOK™ Module
- Voltage Rating: 1600 V (VDRM and VRRM)
- Current Rating: 150 A average, 250 A RMS
- Surge Current: Up to 4500 A (8.3 ms half-cycle)
- Package Style: Electrically isolated metal baseplate for easy heatsinking
- Mounting Torque: 4–6 Nm for M6 screws
- Weight: ~500 grams
